System Type
Single pump system

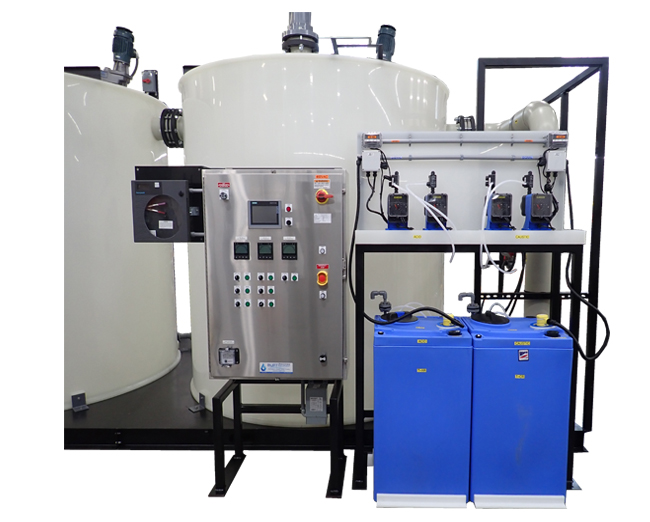

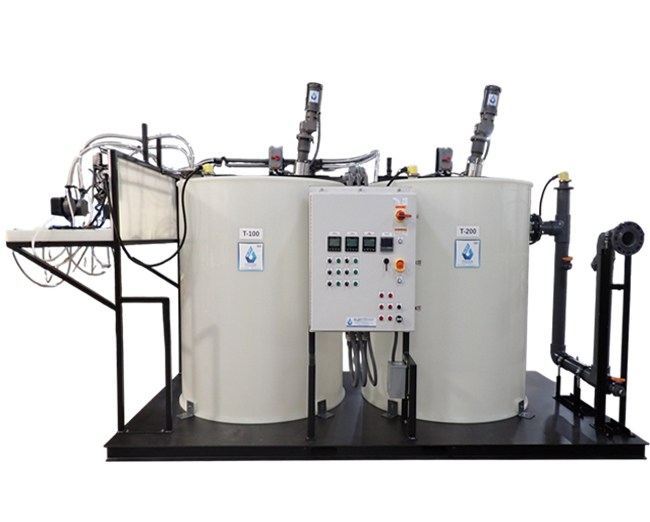

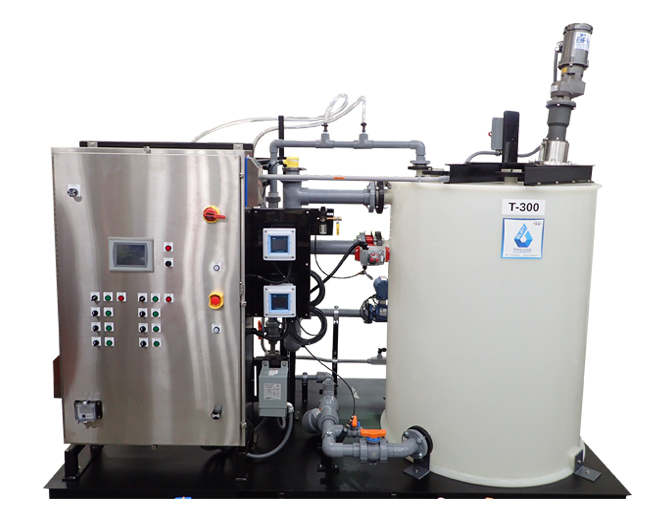

The BPN series systems are fully automated, skid-mounted pH neutralization units engineered to safely treat wastewater with pH levels from 2 to 12. Designed for flexible flow rates, they deliver precise, dependable control across a wide range of industrial applications. Available in both single and dual-stage models, BPN ensures compliance and reliability in every process
| pH Range | Single Stage: 4–10 / Dual Stage: 2~12 |
| Flow | Up to 85 GPM |
| Materials | PP, CPVC, PVC |
| Controls | Relay Logic or PLC Controls |
System Type
Single pump system
Product Compatibility
M1, M2, M3, M4, MD1, MD3, MC2, MC3
Frame Material
Polyethylene
Mounting Position
Floor or Wall
PSI
150
Bar
10.3
No PDF available.
Automated acid neutralization systems use pH adjustment chemicals and can process 2-12 pH range liquids with various flow rates. Burt Process has both continuous and batch treatment options, including designs for difficult-to-adjust waste streams.
Our BPN units are custom-designed to meet your company’s requirements. Available options include batch neutralization, dual and multi-stage neutralization, bulk chemical transfer for automatic reagent tank make-up, and HMI/BMS/SCADA interface. We offer pH and flow monitoring as well as neutralization effluent recording. If gravity flow is not possible, we can design the equipment to use influent and effluent pump lift stations.
Every system is completely assembled and thoroughly tested before it’s shipped. We’ve built these systems with batch or continuous flow configurations for organizations that need to treat a higher volume of wastewater.
