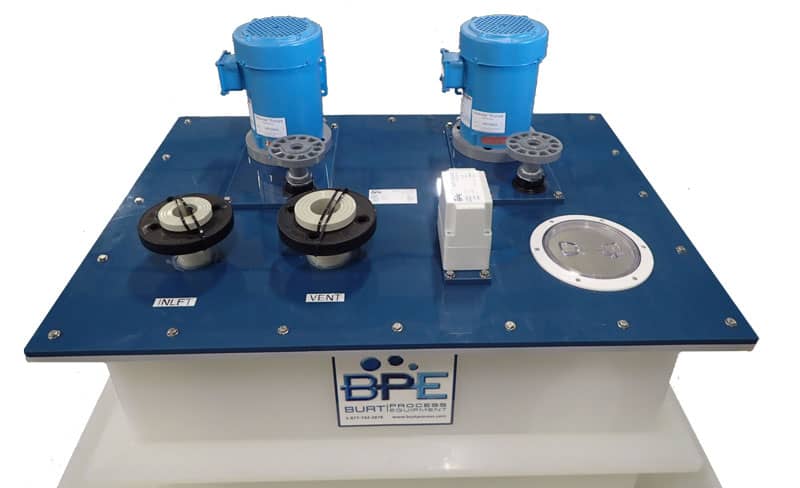

Duplex Lift Stations units are the two pumps standard option for the proven solution for your pump lift station needs. Duplex Pump Lift Stations are used in cases when pump redundancy is required for high inlet flow conditions and to eliminate downtime.
| Application | Pump redundancy ensures reliability during high inlet flow and prevents downtime |
| Pump Control | Alternating pump controls standard to balance wear and extend pump life |
| High Flow Response | Both pumps run simultaneously if liquid level exceeds the normal pump turn-on setting |
| Level Recovery | Simultaneous pumping stops when liquid drops to the turn-off level |
| High-Level Alarm | Optional alarm triggers when liquid rises above the second pump turn-on level |
System Type
Single pump system
Product Compatibility
M1, M2, M3, M4, MD1, MD3, MC2, MC3
Frame Material
Polyethylene
Mounting Position
Floor or Wall
PSI
150
Bar
10.3
No PDF available.

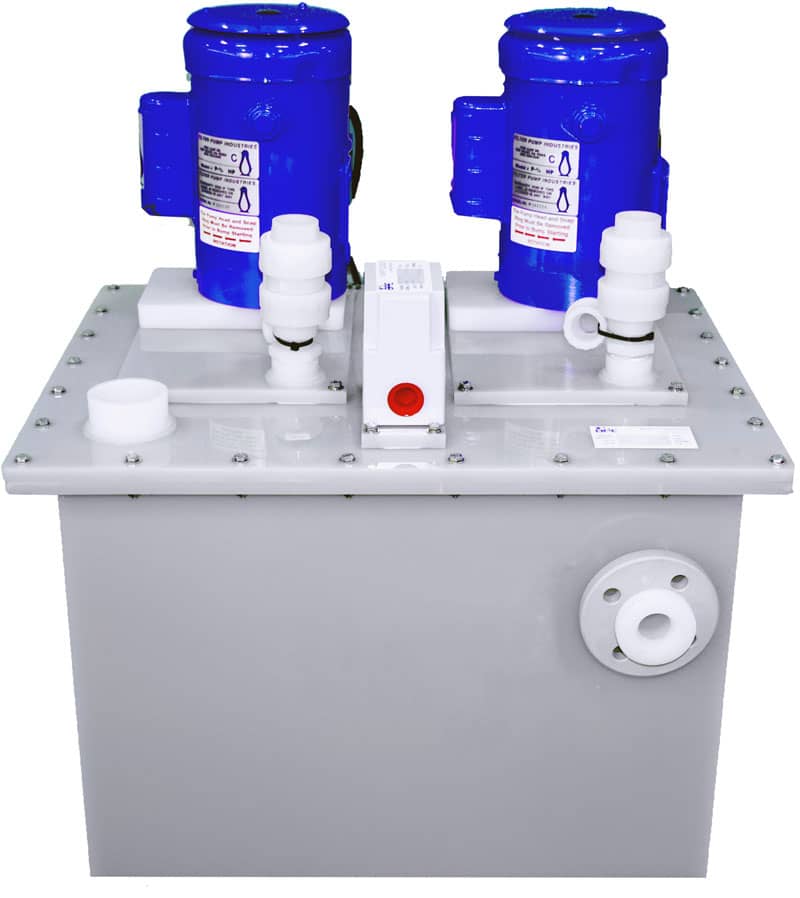

Duplex Lift Stations units are the two pumps standard option for the proven solution for your pump lift station needs. Duplex Pump Lift Stations are used in cases when pump redundancy is required for high inlet flow conditions and to eliminate downtime. Duplex Lift Station units come standards with alternating pump controls to even out wear and promote longer pump life. When flow into the system spikes and the level rises above the normal pump turn-on setting, the system will trigger both pumps to run simultaneously until level returns to the pump turn-off setting. Optional high-level alarm sounds when liquid level rises above the second pump turn-on setting.

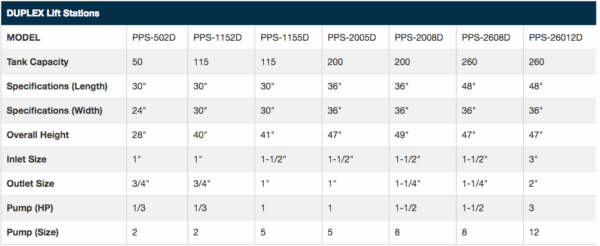

| Specifications | Polypropylene (PPS) Models |
|---|---|
| Tank Capacity | 50-260 |
| Inlet Size | 1″ – 3″ |
| Outlet Size | 3/4″ – 2″ |
| Pump (HP) | 1/3 – 3 |
| Pump (Size) | 2 – 12 |
Burt Process provides fully integrated, prefabricated duplex lift station systems designed for semiconductor manufacturing facilities. Engineered for scalability, precise pump control, and seamless building automation integration, these systems reliably manage diverse industrial wastewater streams while withstanding harsh chemical environments.
Read the Full Case Study
