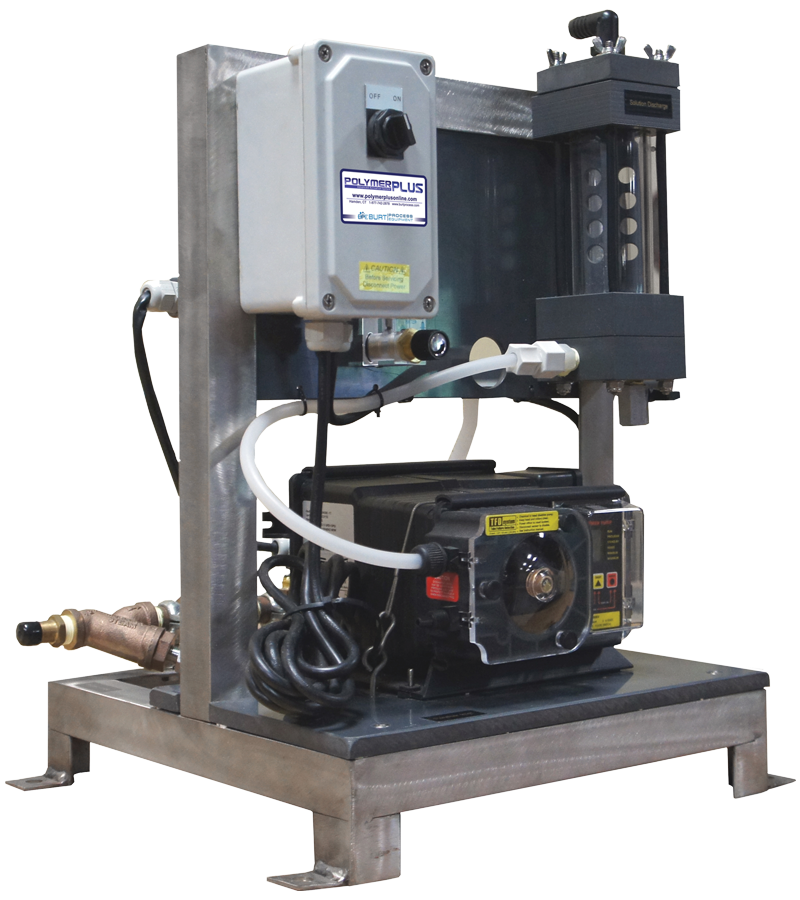

The PolymerPlus 100-PS liquid polymer feeder system is ideal for low polymer feed rate applications. It operates efficiently with power consumption under 200 watts. The system features a self-priming peristaltic metering pump that can safely run dry. A self-cleaning sight tube provides clear visual monitoring of system performance. Polymer activation is achieved through a high-energy, motorless activation chamber, and a water flow switch is included to ensure safe and reliable operation.
| Pump Type | Solenoid-operated diaphragm pump |
| Water Supply Requirements | Potable or filtered process dilution water |
| Operating Pressure | 30 to 100 psi |
| Water Flow Switch | Stops polymer pump if water flow drops below the minimum |
| Frame Construction | All-welded stainless steel |
| Component Design | Modular and easy to access |
| System Dimensions | 15″ x 15″ x 21″ tall |
| Injection Valve | External, accessible without disturbing activation chamber |
| Operating Voltage | 120 VAC |
| Power Consumption | Less than 200 watts |
System Type
Single pump system
Product Compatibility
M1, M2, M3, M4, MD1, MD3, MC2, MC3
Frame Material
Polyethylene
Mounting Position
Floor or Wall
PSI
150
Bar
10.3
No PDF available.
The Blending of Polymers 100-PS Liquid Polymer Feeder Systems is designed for low polymer feed applications. It activates all types of Dry Blending Polymer through the Burt Process Equipment motorless, high energy, patented activation chamber. The metering pump is a peristaltic type pump. It is self-priming and can run dry. The self-cleaning sight tube allows the operator to see how the system is operating. The patented assembly is operated by the Blending of Polymers solution as it leaves the system.
| Model | Feed Rate | Flow Rate |
|---|---|---|
| 101-PS | 0.1 – 5 GPD (0.02 – 0.8 LPH) | 10 – 60 GPH (40 – 230 LPH) |
| 102-PS | 0.5 – 12 GPD (0.1 – 1.9 LPH) | 10 – 120 GPH (40 – 460 LPH) |
| 103-PS | 1 – 20 GPD (0.2 – 3.2 LPH) | 15 – 150 GPH (75 – 570 LPH) |
| 104-PS | 2 – 43 GPD (0.4 – 6.8 LPH) | 15 – 300 GPH (75 – 1,140 LPH) |
