Standard Pump Lift Stations

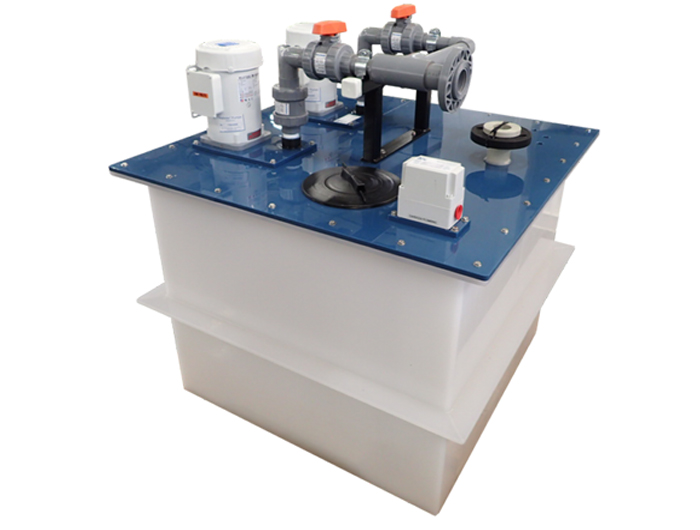

Simplex Units are for applications where pump redundancy is not required. Tanks range in size from 7 to 50 gallons and are available in molded high-density polyethylene (HDPE) or natural polypropylene. Covers are 1/2” thick bolt-down polypropylene. Simplex Lift Stations are completely automated and designed to handle the most aggressive chemical solutions. Most units are off-the-shelf and can often be shipped on the same day.

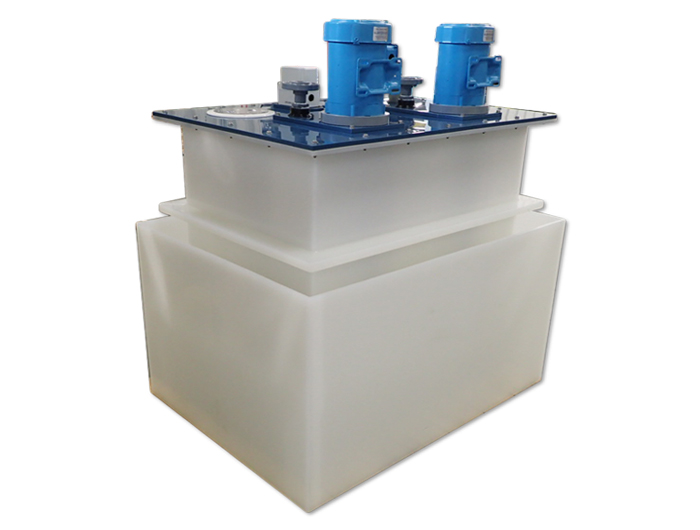

Duplex Units are for cases when pump redundancy is required for high inlet flow conditions and to eliminate downtime. Duplex Lift Stations come standard with alternating pump controls to even out wear and promote longer pump life. When the flow into the system spikes and the level rises above the normal pump turn-on setting, the system will trigger both pumps to run simultaneously until the level returns to the pump turn-off setting. An optional high-level alarm sounds when the liquid level rises above the second pump turn-on setting.
