Specialty Wastewater Treatment

Overview

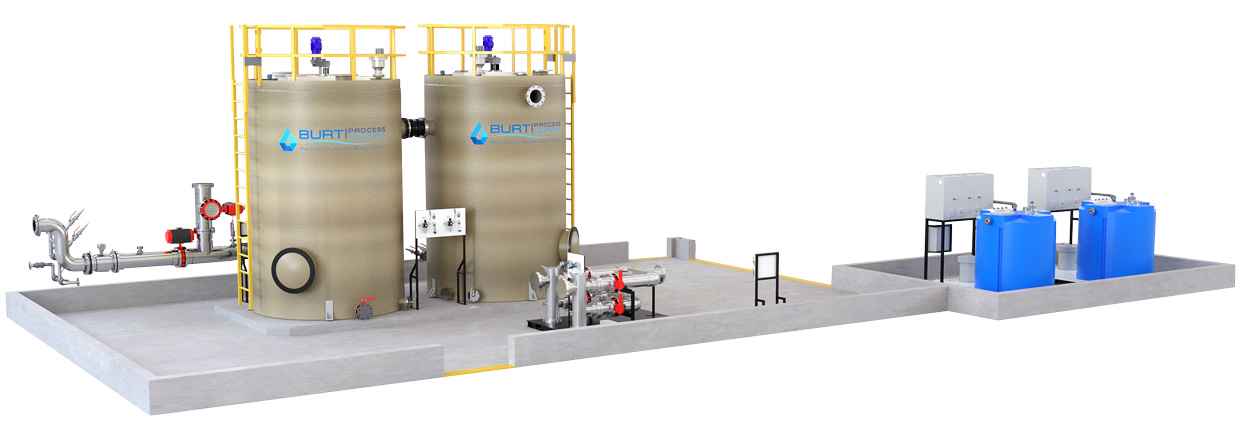

Burt Process has been providing specialty wastewater treatment systems for over 50 years. We can custom-design a decontamination system for all Biosafety Levels (BSL 1 – 4). Systems typically include storage and batch-treatment tanks, along with all valves, instruments, pumps, and controls to safely decontaminate the waste.

Both chemical and heat-based treatment options are available. The batch treatment process guarantees full waste decontamination prior to final discharge. Batch sizes range from 10 gallons to hundreds of gallons, depending on the site demands, with storage tanks sized to ensure sufficient time to decontaminate each batch.

All units are designed to be simple to use, easy to maintain, and are custom fabricated to fit into existing locations. Typically, systems are fully assembled, piped, and wired on a single skid to simplify installation, but can be shipped in smaller modules to make best use of the available floor space as required.

Standard features

  • Polypropylene construction.
  • Complete turnkey system assembly.
  • Duplex pumps for system redundancy.
  • Vent filters.
  • Double contained chemical storage tanks.

Options

  • Kynar (PVDF) and Stainless steel tanks and piping.
  • Double walled tanks.
  • Double contained piping systems.
  • Duplex batch systems to speed processing.
  • HEPA vent filters.

Control Systems

  • UL 508A & 698A certification (standards for industrial control panel fabrication).
  • Compliance with NEC/NFPA 79 (electrical standards for industrial machinery).
  • NEMA 4/4X hinged door enclosures.
  • E-STOP button with protective shroud.
  • Lockable main power disconnect switch.
  • PLC and PC based control systems.
  • High voltage and low voltage designs.
  • Complete control integration to building monitoring system.

Documentation & Support

  • Complete engineering package with P&IDs, ladder diagrams, BOM cross references, and CAD system layout, including 3D models.
  • Burt Process Equipment’s would class field service offers start-up assistance, SAT, installation supervision and IQ/OQ support.
