CUSTOM PUMP LIFT STATIONS
A pump lift station is a device used to move solution from a lower to a higher elevation, or from a location where gravity flow is not possible or would be impractical.
Custom Pump Lift Stations are designed by Burt Process application engineers who work with clients to develop custom solutions tailored to unique system requirements.
Lift Stations are utilized in many applications and are integral to most building infrastructures including:
- Biopharma
- Semiconductor
- Food and beverage processing
- Government
- Colleges and Universities
Custom lift stations vary by application. Depending on the application, there are numerous options. Some options include:
Pump Flow: From less than 1 GPM to greater than 1,000 GPM
Pump Technologies: Vertical or horizontal centrifugal, positive displacement, gear, magnetic-drive, grinder, metering, self-priming, and air operated diaphragm
Pump Configurations: Simplex, Duplex, and Triplex
Tank Volume and Material: Capacities from 5 to 15,000 gallons; Materials of construction including polypropylene, PVC, CPVC, PVDF (Kynar), fiberglass, and stainless steel.
Instrumentation & Control: Level transmitters, redundant high and high-high level switches, temperature and analytical measurements, leak detection, agitation, equalization options, specialty controls.
Available Options Include:
- Double containment
- PLC based controls
- Ethernet and remote connectivity
- Hazardous location lift stations with controls
- Unique tank geometries

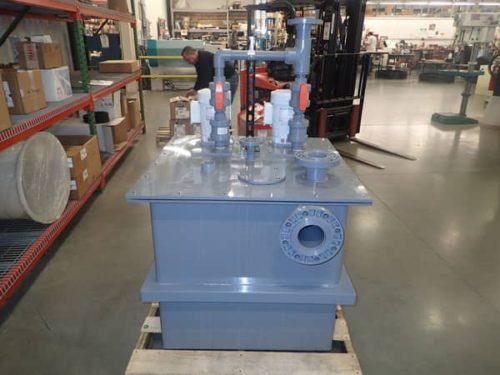

HF WASTE PUMP LIFT STATION FOR SEMICONDUCTOR INDUSTRY
Features Include:
- Double-walled PVDF tank
- Splash and spray protection from the pumps and discharge
- Pump leak monitoring
- Tank leak monitoring
- Peristaltic pump for complete tank pump down
- PLC control for BAS monitoring

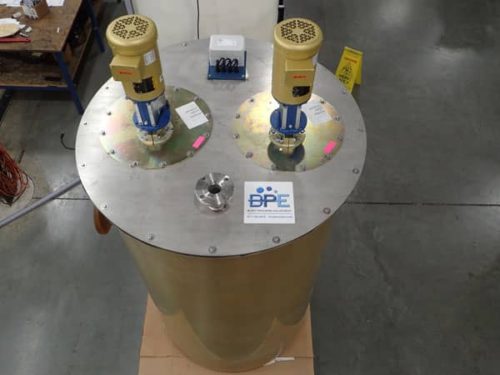

PHARMACEUTICAL PLANT WASTE PUMP LIFT STATION
Features Include:
- Accepts waste from the plant facility
- 3000 gal. in-pit polypropylene waste collection tank
- 250 GPM deep set impeller centrifugal pumps
- In-tank pH monitoring for downstream feed forward control
- PLC control
- Duplex pump arrangement

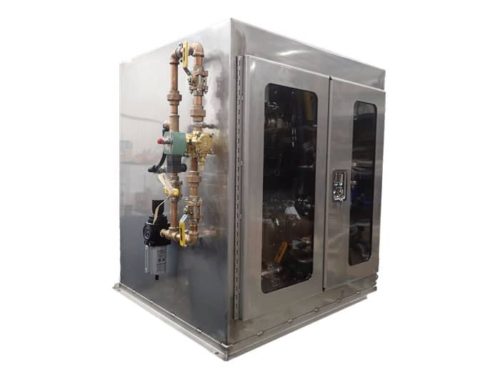

CLEAN ROOM LIFT STATION
Features Include:
- Stainless steel tank with sheathing to protect clean room integrity
- Pharmaceutical grade stainless steel cabinets
- TENV motors to protect particulate level in the clean room
- Duplex pump arrangement

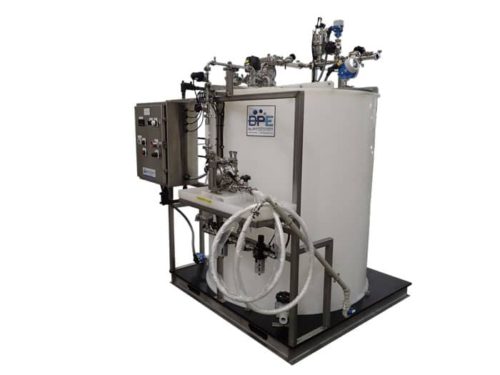

PHARMACEUTICAL PROCESS PUMP LIFT STATION
Features Include:
- Lift Station designed to transfer glycol to the cGMP process area
- All wetted components USP Class IV
- FDA Approved plastics and orbital welded SS piping
- Sanitary Design
- Self-priming peristaltic pumps mounted on cover
- Radar levels sensor
- Simplex Arrangement

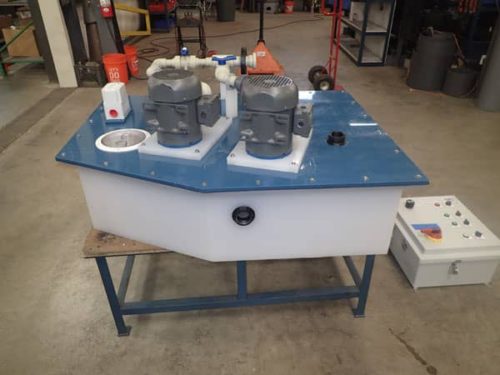

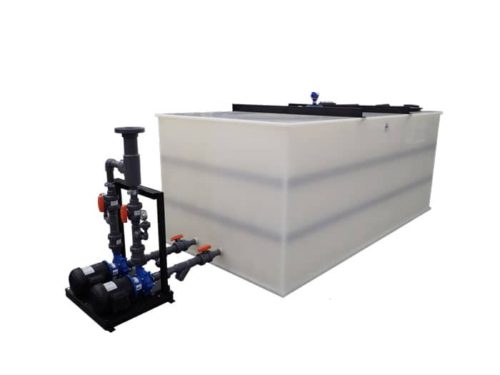

UNIVERSITY SCIENCE WASTE PUMP LIFT STATION
Features Include:
- Lift Station designed to match the drainage invert. Due to lab location drainage piping is 5’ below the finished floor
- Polypropylene tank double-walled
- Ultrasonic non-contact level to pit depth
- Duplex pump arrangement
