HIGH PURITY RODI SYSTEMS
A high purity water system is a prepackaged unit designed to generate, store, and distribute ultrapure water for use in biotech, pharmaceutical, food & beverage, industrial manufacturing, academic and institutional processes. The PurePlus family of RODI water systems are skid mounted and built to be the most cost-effective and easy-to-install ultrapure water systems on the market today. If you’re looking for a durable, easy to operate, reverse osmosis deionization system that provides remote access through state-of-the-art technology, click here to request a free engineering consultation.
HIGH PERFORMANCE CONTROL AND MONITORING
THE BEST MATERIALS AND DESIGN FOR ULTRA PURE WATER
EXCEPTIONAL ENGINEERING AND SERVICE
In addition to superior laboratory water purification systems, Burt Process Equipment engineers and technicians provide complete on-site support for installation and start-up, training, system and distribution loop sanitation. Custom systems are also available for customers with unique requirements, with available services ranging from preliminary site reviews, process design and specification writing, to complete mechanical design, project management and software development.
STANDARD FEATURES:
- High pressure reverse osmosis pressure vessels and performance membranes
- Deionizers (mixed bed resin and EDI electrodeionization)
- Pretreatment water softening and carbon treatment
- Ultrapure storage vessels
- Fusion welded and sanitary polypropylene and PVDF piping
- Ultraviolet bacteria and TOC reduction
- Water quality monitors and integrated control systems
- PLC based controls with optional web interface
Download Brochure
OPTIONS & ACCESSORIES:
- City water booster pumps systems
- Sanitary storage tanks
- Integral and continuous system sanitization
- Integral clean in place systems
- Two pass reverse osmosis systems
- Sanitary pharmaceutical and electronics grade filter elements
- Precision controlled nitrogen tank blanketing
- Ethernet and modem options for remote access
- Reverse osmosis reject recovery
- Loop heat exchangers and temperature control
INDUSTRIES SERVED:
- Pharmaceutical Manufacturers
- Life Science Research Facilities
- Biomedical and Clinical Laboratories
- Semiconductor Fabrication Plants
- Printed Circuit Board Manufacturers
- Food and Beverage Processing
- Metal Finishing Industry
- Hospitals and Institutions
- Educational Facilities
- Power Generation Plants
ULTRAPURE WATER SYSTEM SAMPLES

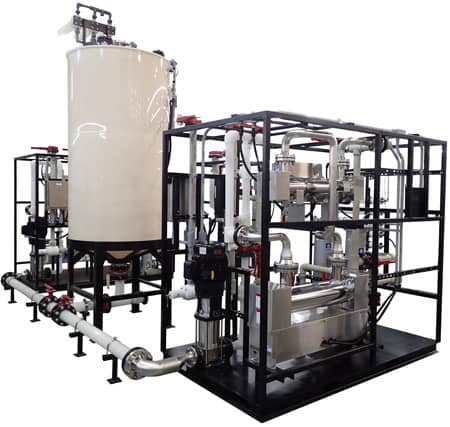

HIGH PURITY WATER RODI SYSTEM FOR UNIVERSITY
The University High Purity Water System creates 1.5gpm of CAP I water utilizing city water feed source. Water is first treated in a pre-treatment step utilizing filtration, chloramine reduction, and reverse osmosis. The water is then stored in a high purity water tank and re-circulated through a polishing loop for final treatment at the rate of 23gpm & 75psig. The unit is provided on two skids with the treatment and controls on one skid and the storage tank on another. The Systems are completely automated and provides complete onboard controls via a PLC with touch screen interface. A secondary distribution pump is provided to minimize downtime during maintenance intervals.
The System Unit Features:
- Fusion-welded polypropylene piping
- UL control panel
- Service exchange DI resin bottles
- 254nm UV treatment
- 0.2-micron absolute final filtration
Collection Tank: 500 gallon welded heavy-duty polypropylene storage vessel.
Instrumentation: Complete control package interface to PLC including storage tank pressure level transmitter, % rejection monitor on RO module, conductivity loop monitoring, UV bulb status, and variable speed control for distribution pumps.
Use: CAP I water for university science laboratory.

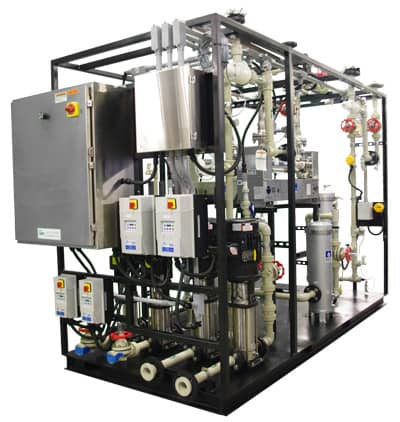

RODI WATER SYSTEM FOR HOSPITALS
The RODI Hospital High Purity Water System is designed to provide RO water at a rate of up to 5 GPM to an RO/DI water storage tank. The storage tank supplies purified deionized water through a DI Supply circulation loop to points of use at a flow rate of 20 GPM. The tank also supplies purified water through an RO supply circulation loop at a flow rate of 40 GPM. The system is completely automated and provides complete onboard controls via a PLC with touch screen interface. Two distribution pumps are provided to feed the two loops.
The System Unit Features:
- Fusion-welded polypropylene piping
- UL control panel
- Service exchange DI resin bottles
- 254nm UV treatment
- 0.2-micron absolute final filtration
Collection Tank: 1500 gallon welded heavy-duty polypropylene storage vessel.
Instrumentation: Complete control package interface to PLC including storage tank pressure level transmitter, % rejection monitor on RO module, conductivity loop monitoring, UV bulb status, and variable speed control for distribution pumps.
Use: RO and RODI dual production for Hospital use.

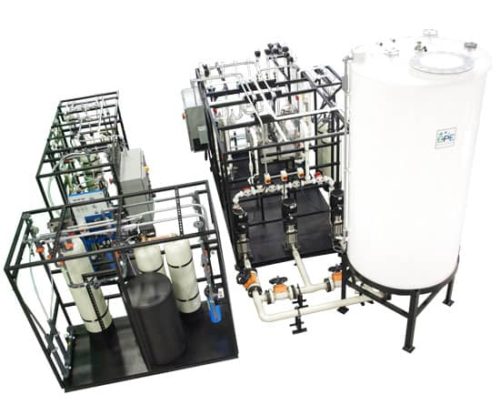

ULTRAPURE WATER SYSTEM FOR AEROSPACE MANUFACTURER
Unit Features of Aerospace Ultrapure Water:
- Fusion-welded polypropylene piping
- UL control panel
- Service exchange DI resin bottles
- 254nm UV treatment
- 0.2-micron absolute final filtration
Collection Tank: 400 gallon welded heavy-duty polypropylene storage vessel.
Instrumentation: Complete control package interface to PLC including storage tank pressure level transmitter, % rejection monitor on RO module, conductivity loop monitoring, UV bulb status, and variable speed control for distribution pumps.
Use: 18MOhm DI water with low bacteria constraint for aerospace manufacturing and R&D facility.

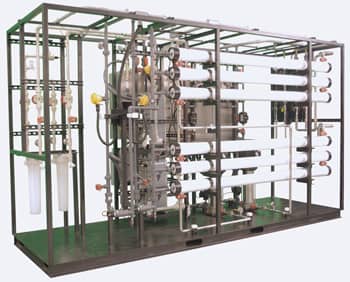

DEIONIZED WATER SYSTEM FOR LABORATORY
The supplied Lab Water System is designed to provide Reverse Osmosis water at a rate of up to 5gpm RODI water storage tank. The storage tank supplies purified deionized water through a DI supply circulation loop to points of use at a flow rate of 50gpm. The Laboratory Water Purification Systems are completely automated and provide complete onboard controls via a PLC with touch screen interface. A secondary distribution pump is provided to minimize downtime during maintenance intervals.
The System Unit Features:
- Fusion-welded polypropylene piping
- UL control panel
- Service exchange DI resin bottles
- 254nm UV treatment
- 0.2-micron absolute final filtration
