POLYMER FEED SYSTEM. D series liquid activation

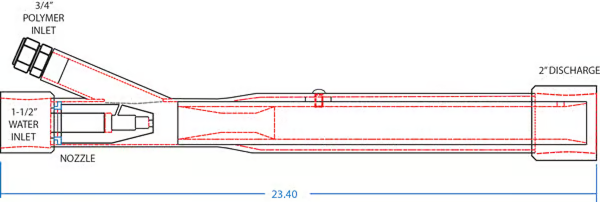

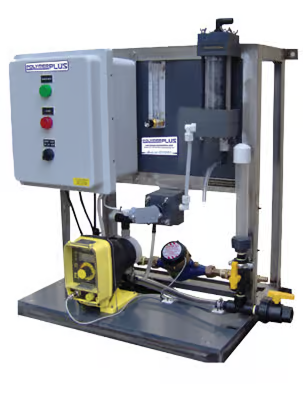

The Polymer Blending 100-D Liquid Polymer Activation System is designed for mid-range dewatering polymer feed application. The 100-D Polymer Blending activates all types of polymers through the Burt Process Equipment patented motorless, high energy, activation chamber. The self-cleaning sight tube allows the operator to see how the system is operating. The patented assembly is operated by the blending polymer solution as it leaves the system.
polymer documents:
- Polymer Brochure
- Polymer Data Sheet
- Technical Data
- Engineering Specification
- Activation System Overview
technical information:
- The Polymer Plus 100-D Emulsion Polymer Blending System has a solenoid-operated diaphragm metering pump.
- The 100-D Dewatering Polymer System operates with potable or filtered process dilution water at 30 to 100 psi.
- A water flow switch stops the polymer pump whenever the water flow drops below the minimum.
- The frame is all-welded stainless steel. Components are modular and easy to access. Basic system dimensions are:15" x 15" x 21" tall.
- The external injection valve is accessible without disturbing the activation chamber.
- 100-D Emulsion Polymer Feed System: Operating voltage is 120 VAC. Power consumption is less than 200 watts.
available options:
- The 100-D Liquid Polymer Activation Has Low Polymer Switch
- It Has Flush Timer
- The 100-D Liquid Polymer Activation Has Low Dilution Water Flow Alarm
- On/Off Auto with Relay
- Run Remote Indication
- Custom Control Panel
