polymer feed system. pc series liquid activation

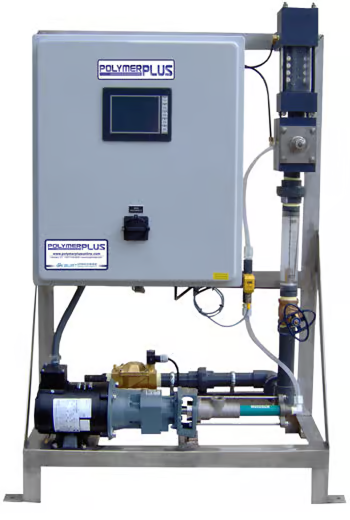

The PolymerPlus Polymer Feed System is designed to feed all types of liquid polymer feeder at all feed rates. Each PolymerPlus Polymer Feed System activates the polymer through the Burt Process Equipment motorless, high energy, patented activation chamber. The metering pump is a progressing cavity type pump. The self-cleaning sight tube allows the operator to see how the system is operating. The patented assembly is operated by the polymer solution as it leaves the system.
polymer documents:
- Polymer Brochure
- Polymer Data Sheet
- Technical Data
- Engineering Specification
- Activation System Overview
technical information:
- The Liquid Polymer Feeder will operate with potable or filtered process dilution water at 30 to 100 psi.
- A water flow switch stops the polymer pump whenever the water flow drops below the minimum.
- The frame is all-welded stainless steel. Components are modular and easy to access. Basic system dimensions are 16”x 24”x 30” tall.
- The external injection valve is accessible without disturbing the activation chamber.
- The operating voltage is 120 VAC. Power consumption is less than 1,000 watts.
available options:
- Low Polymer Switch
- Flush Timer
- Low Dilution Water Flow Alarm
- On/Off Auto with Relay
- Run Remote Indication
- Custom Control Panel
