POLYMER FEED SYSTEM. s series dry auger

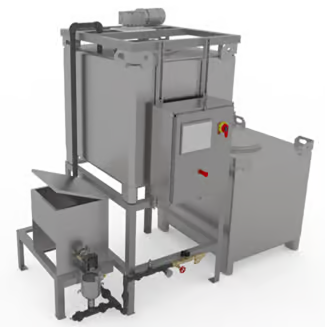

Burt Process PolymerPlus dry polymer feed system is engineered to provide a reliable means of feeding dry polymers. A multi-step process efficiently disperses and hydrates the polymer into a homogeneous solution. The initial step wets the polymer with multiple sprays. The solution is suctioned by a high energy eductor which conveys it to the aging tank and then the solution is gently agitated until fully aged. The polymer blending system is fully modular. It is available complete with age or feed tanks and solution metering pumps of your choosing: gear pumps, progressing cavity pumps, wobble stator pumps, diaphragm pumps, or peristaltic pumps. The tanks can be configured over/ under, side-by-side, or sequentially. Our system can also be adapted to utilize existing water treatment, mix, or storage tanks.

polymer documents:

Polymer Brochure
Polymer Data Sheet
Technical Data
Engineering Specification
Activation System Overview

Features:

Hopper has a standard capactiy of 3.8cu.ft. (107L)
Vibrator prevents polymer from bridging
Sensors ensure reliable operation
Air heater provides low humidity air to the discharge
Easy polymer feed rate calibration
Reliable control logic
User friendly operator interface
Dilution capacities from 5 to 80GPM
Stainless Steel construction

Options:

Hopper capacities

Dilution water flowrates above 80GPM
Variety of bulk bag handling systems
Tanks of various sizes and arrangements
Solution pumps
Various Voltages
UL508A control panel
Fully customized to meet your needs

SERIES

FEED RATE

FLOW RATE

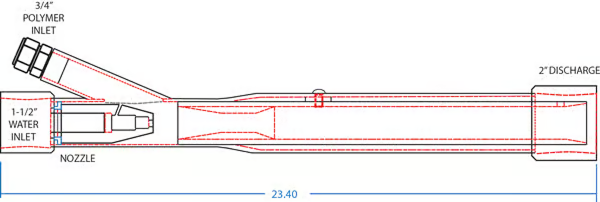

Our Dry Polymer feed system incorporates a high efficiently eductor engineered specially for difficult to handle material, such as dry polymer. It generates high conveying air flow. The design transport velocity is 3000 ft./min. The tube is made of Teflon to prevent polymer sticking. The Teflon is translucent for quick visual inspection. High speed collision between the polymer granulates and the water stream assures thorough dispersion and wetting. This results in faster hydration and minimizes the required aging time for maximum polymer activation.

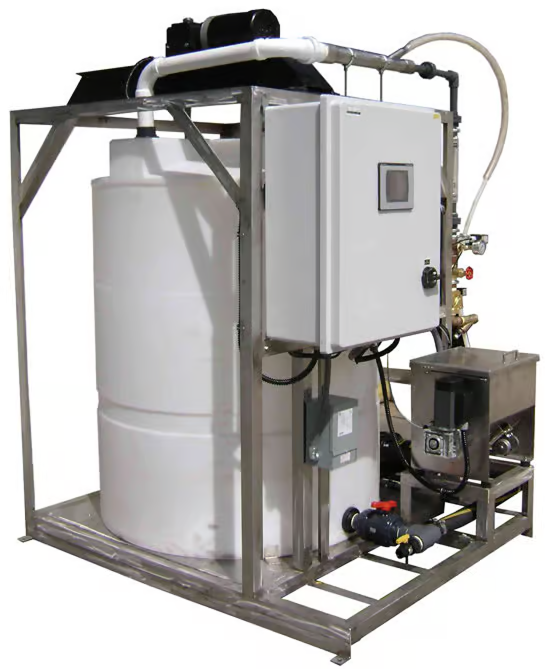

The PolymerPlus Dry Auger System is engineered to provide a reliable means of feeding dry polymers and other difficult to feed materials. the material being fed is vacuumed by the eductor suction air flow. This prevents polymer build-up. The feed rate is controlled by a variable speed gear motor. The feeder is easy to operate and simple to maintain. Our dry polymer systems assemblies are modular in design, available complete with tank or metering pumps and can also be adapted for use with existing storage tanks. -System capacities range from 50 to 3,000 GPH of 0.5% solution with 30 minutes of aging. -Dry polymer feed capacities range up to 250 lbs./hr. (113 kg/ hr.) Dilution water feed capacities range up to 100 GPM (380 LPM). -The Standard hopper has a 2.7 ft3 (75L) capacity. A vibrator assures consistent polymer flow. -The system frame and enclosure are welded stainless steel.
