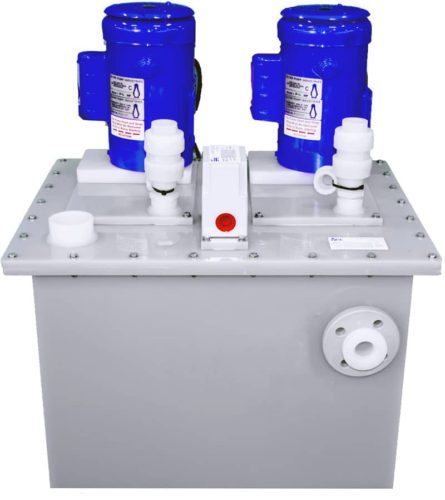

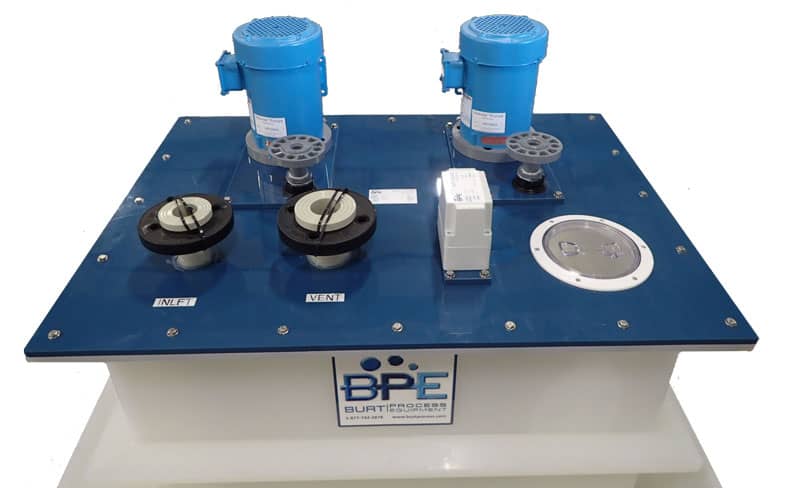

DUPLEX PUMP LIFT STATIONS
Duplex Lift Stations units are the two pumps standard option for the proven solution for your pump lift station needs. Duplex Pump Lift Stations are used in cases when pump redundancy is required for high inlet flow conditions and to eliminate downtime. Duplex Lift Station units come standards with alternating pump controls to even out wear and promote longer pump life. When flow into the system spikes and the level rises above the normal pump turn-on setting, the system will trigger both pumps to run simultaneously until level returns to the pump turn-off setting. Optional high-level alarm sounds when liquid level rises above the second pump turn-on setting.
Features:
- Superior, reliable designs provide uniform usage of both pumps and fail-safe pump operation if required due to excess demand or pump malfunction.
- Standard NEMA 4X control panel provided. Other enclosures available upon request.
- Permits selection of either float type level control system (LSF Series) or conductivity type level control system (LSCE Series).
- Factory suction piping extensions and discharge piping with ball check valve
Options:
- High-level alarm lamp and horn
- Isolation valves
- Discharge manifold
- Throttling valve and flowmeter
- Various pumps styles including air-operated, self-priming, and submersibles
