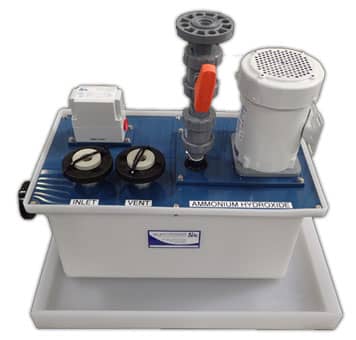

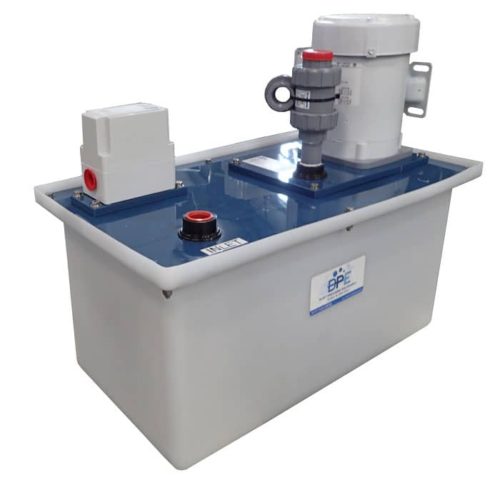

SIMPLEX PUMP LIFT STATIONS
Simplex Lift Station units are the one pump standard option for the proven solution for your pump lift station needs. Simplex Pump Lift Stations are used for applications where pump redundancy is not required. Simplex Pump Lift Stations are completely automated and designed to handle the most aggressive chemical solutions in plating, waste treatment, semiconductor, and biotech applications.
Simplex tank units range from 7 to 50 gallons. Simplex Pump Lift Station tanks are available in two plastics, High-Density Polyethylene (HDPE) Simplex Pump Lift Stations or natural Polypropylene Simplex Pump Lift Stations. Simplex Lift Station covers are 1/2″ thick bolt-down Polypropylene. Most Simplex Lift Station units are off-the-shelf and can often be shipped the same day.
Features:
- A wide range of flow and head capabilities to meet all requirements
- Rugged acid-resistant construction for extra safety and durability
- Smooth interior for ease of cleaning
- Corrosion-resistant pump of CPVC or polypropylene, optional PVDF or stainless steel
- PPS models will withstand temperatures to 180 F; PES models to 140 F
- Liquid level control automatically turns the pump on a high level and off at a low level
- Pump Lift Station Documents:
- Lift Station Brochure
- Application Questionnaire
- P&ID Drawings
- Sample Layout Drawings
