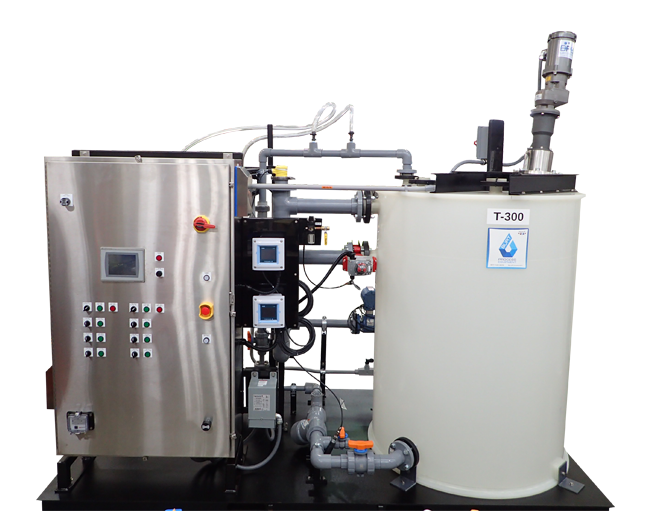

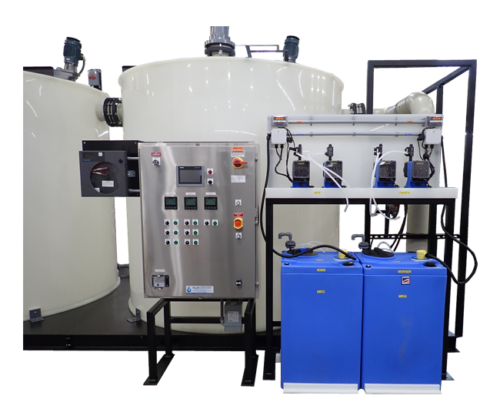

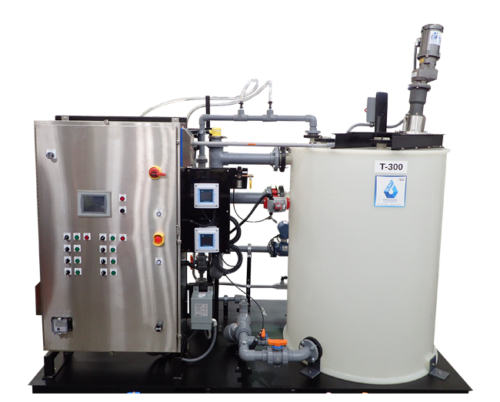

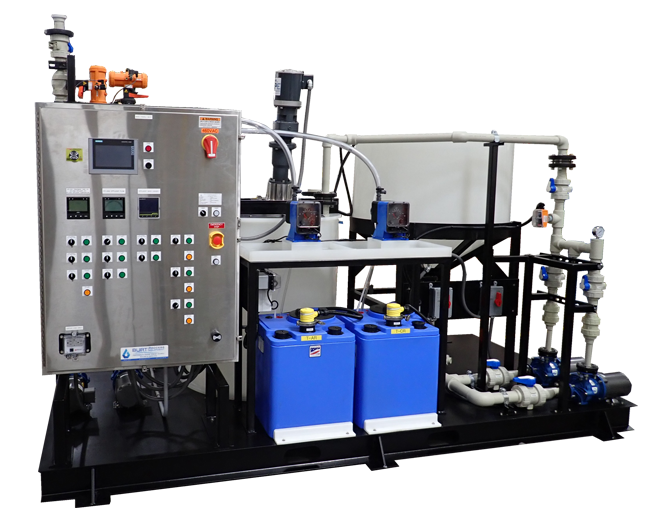

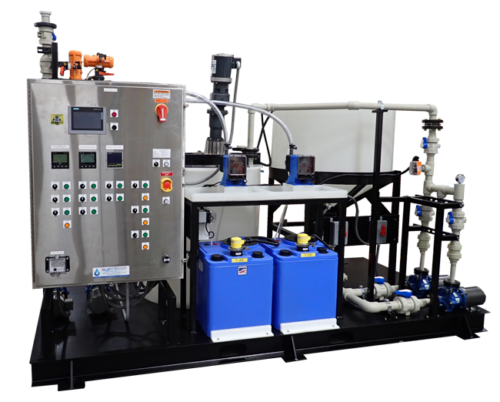

BPN Series pH Adjustment Systems

The BPN series systems are fully automated, skid-mounted pH neutralization units engineered to safely treat wastewater with pH levels from 2 to 12. Designed for flexible flow rates, they deliver precise, dependable control across a wide range of industrial applications. Available in both single and dual-stage models, BPN ensures compliance and reliability in every process.
Consult an Engineer

BPN Series Automated pH Adjustment Systems for Wastewater


Automated waste neutralization systems use pH adjustment chemicals to process 2-12 pH range liquids with various flow rates. Burt Process has both continuous and batch treatment options, including designs for difficult-to-adjust waste streams.

Our BPN units are custom-designed to meet your company’s requirements. Available options include batch neutralization, single and multi-stage neutralization, and HMI/BMS/SCADA interface. We offer pH and flow monitoring as well as effluent recording. If gravity flow is not possible, we can design the equipment to use influent and effluent pump lift stations.

Every system is completely assembled and thoroughly tested before it is shipped. Our systems can be built with batch or continuous flow configurations for a wide range of flow conditions, to tailor the system to your organization’s needs.

Get a Quote

Features

  • Durable Treatment Tank: Constructed from fusion-welded natural polypropylene and equipped with premium gear drive mixers for long-lasting, reliable performance.
  • Reagent System: Includes dual 70 gal or 120 gal HDPE tanks with BPE level controls and precision dosing pumps to ensure accurate chemical delivery.
  • U-Trap & Monitoring Components: Wet well and instrumentation are engineered to meet or exceed local regulatory compliance requirements, supporting safe and effective wastewater treatment.
  • Agitation System: Properly sized 316 SS wetted mixers, mixer rails, and AVS baffles are included to ensure thorough and reliable tank agitation.
  • Reagent Piping: Double-contained piping is provided to prevent leaks during operation and to meet EH&S standards.
  • Skid-Mounted Design: BPN systems are mounted on epoxy-coated HRS skids, allowing for fully pre-wired and pre-plumbed system delivery.



Regulatory Compliance
  • Options for effluent U-traps in CPVC, PVC, & Polypropylene are available.
  • Effluent monitoring options for both pH and flow in U-traps.
  • Single pen, dual pen, or digital chart recorders can be integrated with effluent monitoring U-traps to meet regulatory requirements.
  • Actuated valves can be added to effluent discharge U-traps to ensure that out-of-spec waste is not discharged.



Startup and Training:
  • On-site support with BPE service technicians includes:
    • System startup and operational verification to ensure functionality
    • Training for client personnel on system operation, maintenance, and troubleshooting
  • Field Services: Installation is guided by detailed engineering documentation provided by BPE. Field service installations can also be performed by BPE technicians upon request.

Specifications

  • Single Stage Systems: Designed for wastewater with influent pH levels from 4 to 10, ideal for applications requiring moderate correction.

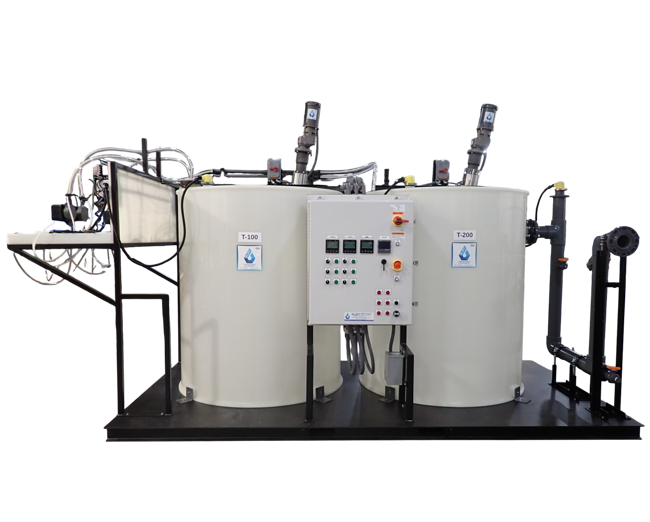

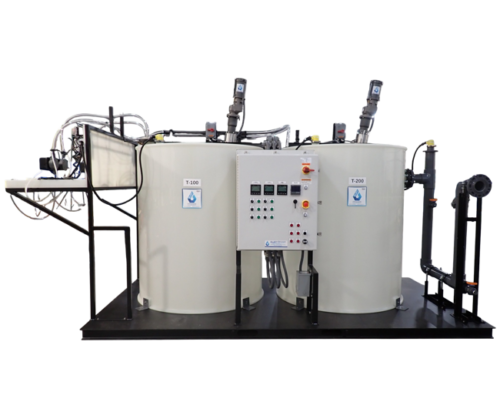

  • Dual Stage Systems: Designed for wastewater with influent pH levels from 2 to 12, providing extended range treatment for more demanding conditions.
  • BPN: Delivers dependable performance through advanced automation and precise controls. Engineered with premium components and high-end features included as standard, BPN sets the industry benchmark for reliability and efficiency in wastewater treatment.
  • Retention Time: Both single-stage and dual-stage systems are sized for a minimum 20-minute retention time to ensure effective waste treatment.



Control System Integration
  • Options for Allen-Bradley or Siemens PLC-controlled systems are available, ensuring smooth deployment into existing facility controls environments.
  • Options to add BAS communication modules are available.
  • BPN system panels include complete integration with all system instrumentation, such as pH & flow instrumentation.
  • System control panels are pre-mounted & pre-wired to the system skid & skid components.



Complete Solutions from Design to Project Completion
  • Complete engineering package with P&IDs, electrical ladder logic diagrams, O&M manuals, component indices, CAD layout drawings, and 3D modeling.
  • Systems are rigorously tested at BPE’s facility to ensure compliance with client specifications and operational standards. Clients have the option to visit factory to witness FAT testing.
  • Options for maintenance plans and spare parts for continued project success.

Downloads

TitleDownloads
BPDN pH Neutralization Systems Matrix View PDF
BPSN pH Neutralization Systems Matrix View PDF
pH Neutralization System Application Questionnaire View PDF
P&ID and Layout Drawings View PDF

Case Studies

High-Capacity Wastewater pH Neutralization Systems for Data Centers

Burt Process designed and delivered wastewater pH neutralization systems for a leading tech company, providing reliable chemical wastewater treatment across multiple sites. The engineered systems safely treat high-volume wastewater to meet environmental discharge requirements.
