PolymerPlus 6PSevo-400/1200 Polymer Feed Systems

With over 25 years of proven results, our Motorless Polymer Activation Apparatus efficiently activates all liquid polymers using a patented high-energy nozzle and self-cleaning sight tube that confirms proper operation at a glance. Standard systems deliver 0.001–7.67 gph neat polymer with programmable flow, while the valve-free peristaltic pump ensures clog-free, low-maintenance performance.

PolymerPlus 6PSevo-400/1200 Liquid Polymer Feed Systems



The 6PSevo series pairs motorless polymer activation with advanced control technologies. Its patented apparatus activates anionic, cationic, and non-ionic polymers without mechanical mixing, lowering energy and maintenance needs.

A valve-free peristaltic pump reduces clogging and downtime, while the IP66 polymer pump and Cortex7 controller ensure reliable operation in harsh industrial settings.

The 6PSevo series is available in two capacities:

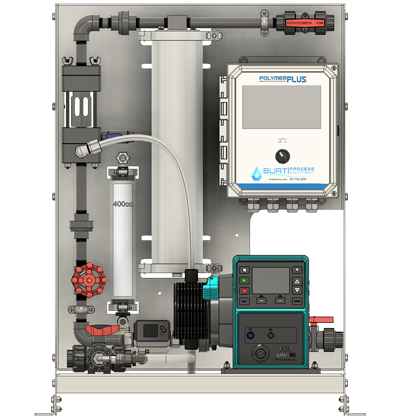

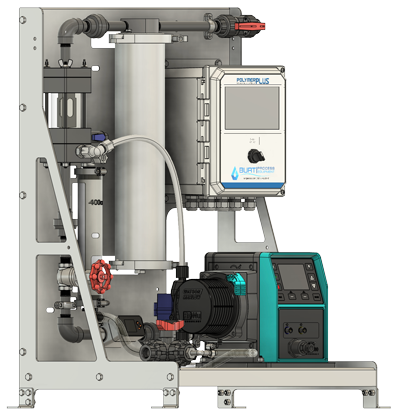

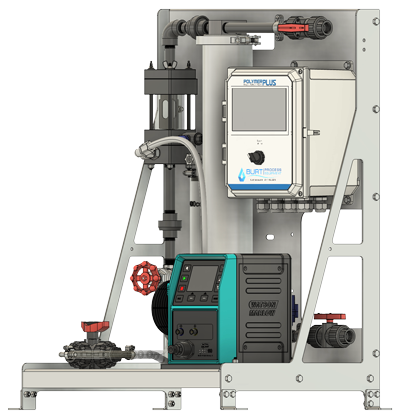

6PSevo 400 — 2 to 400 gph dilution water rate. Ideal for small to mid-sized operations. Zero-clog performance reduces maintenance, lowers service requirements, and improves system uptime.

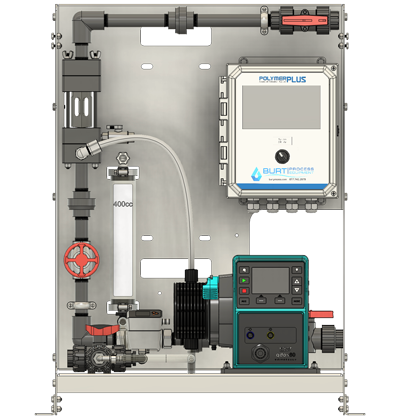

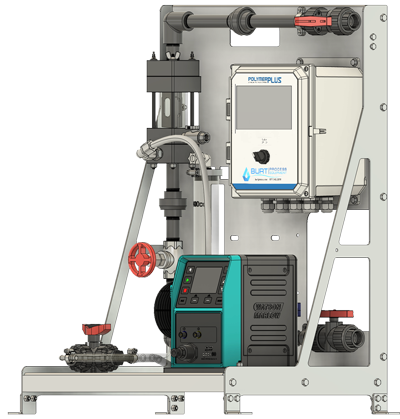

6PSevo 1200 — 80 to 1200 gph dilution water rate. Designed for high-volume applications, delivering continuous high-capacity polymer feeding with the precision and reliability needed to keep industrial facilities running smoothly.

Motorless Activation
Powered by a patented high-energy nozzle, our motorless activation system processes all polymer chemistries without mechanical mixing. With no moving parts to maintain and lower energy demand, it delivers superior activation performance with minimal upkeep.

Cortex Controller
Advanced 7″ capacitive touchscreen with local and remote operation. The Cortex delivers intuitive control, precise polymer feed management, and real-time system monitoring.

Built for industrial use, it ensures full system oversight and seamless integration with your facility’s control systems.

Get a Quote

Features

  • Valve-free peristaltic pump eliminates clogging and maintenance
  • Robust (IP66) Watertight Polymer Pump
  • Local and Remote-Control Operation
  • Solution Concentration Ratio Control
  • Integrated Batch System Program
  • Solution System Flush Control
  • State-of-the-Art Microprocessor Controller with touchscreen
  • Proven, Patented, Motorless Activation
  • One-Gallon Stainless Steel Blending Chamber
  • Thermoplastic Piping for superior corrosion resistance
  • Stainless Steel Frame can be floor or wall mounted. Extended 16” legs are available
  • Twenty-Four month-warranty

Specifications

  • Maximum Working Pressure: 65 psig
  • Dilution Water Flow Rate:
    • 6PSevo-400 Up to 400 gph
    • 6PSevo-1200 Up to 1200 gph
  • Polymer Flow Rate: 0.001 to 7.67 gph
  • Operating Voltage: 120VAC 60hz 1ph
  • Programmable Inputs/Outputs:
    • 8 Digital Inputs
    • 6 Relay Output
    • 4 Analog Inputs
    • 2 Analog Outputs

Downloads

TitleDownloads
PolymerPlus 6PSevo Polymer Feed Systems Brochure View PDF
PolymerPlus 6PSevo Operating Manual View PDF
