Pump Lift Stations for Industrial Pumping Applications


Burt Process Equipment offers two pre-engineered standard configurations: simplex and duplex units. Both are built to withstand aggressive chemical environments, featuring automatic operation and corrosion-resistant construction. Whether you require a single-pump solution (Simplex) for straightforward applications or a dual-pump redundant system (Duplex) for high-flow / low-downtime environments, the Standard Pump Lift Stations by Burt Process provide a robust, chemically compatible solution. Engineered with automatic controls and configurable capacities, these units deliver reliable pumping performance in demanding industrial settings.

Simplex Configuration

• Intended for installations where pump redundancy is not required
• Utilizes a single automatic pump with level controls to turn on/off as liquid reaches preset high/low points
• Available in tank sizes ranging from 7- to 50-gallons (for HDPE/PP versions) in standard series
• Control panels are not required for simplex lift stations with pumps that are 1/3 hp or less

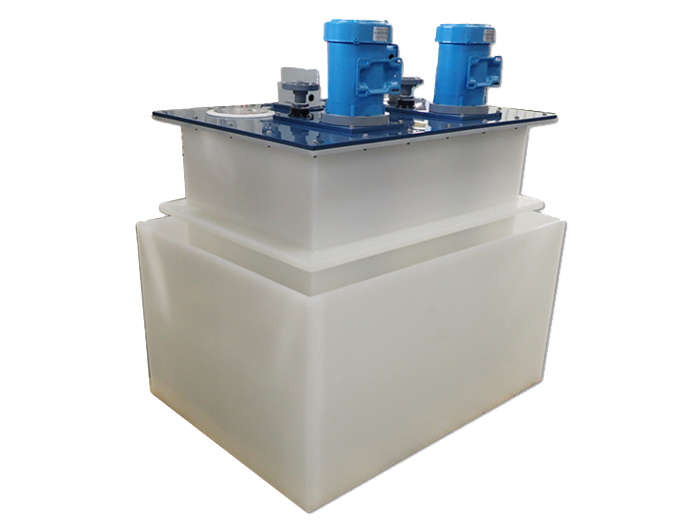

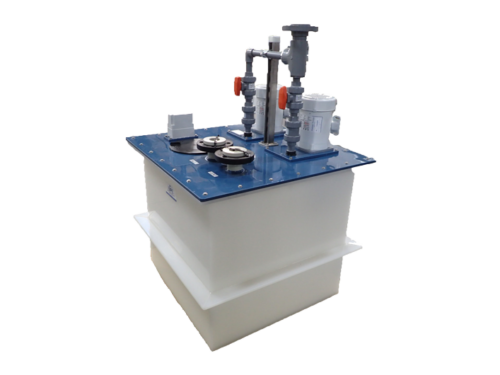

Duplex Configuration

• Designed for applications where pump redundancy is required—for higher inlet flows, continuous operation, or minimized downtime
• Equipped with NEMA 4X control panel
• Lead-lag pump control allows for pump wear to be evenly distributed, reducing the frequency of regular maintenance
• In the event of a surge, if the tank level reaches a certain threshold, both pumps will operate simultaneously
• Optional high-level alarm if liquid rises above the  second pump turn-on setting
• Tank materials, chemical ratings, and construction are the same as the Simplex unit, ensuring robust performance in aggressive environments
