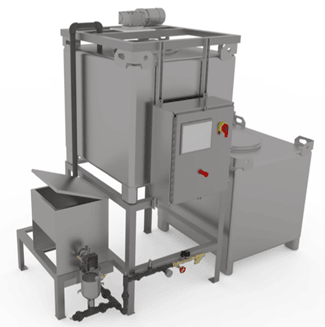

The 100-S Dry Polymer Blending System is designed to handle a wide range of polymer feed rates. It features a progressing cavity metering pump and utilizes a patented, motorless high-energy activation chamber for efficient polymer activation. The system’s high-energy Polyductor draws in, disperses, and hydrates the polymer, enabling rapid hydration and producing finer dispersions. Interior surfaces are rinsed with dilution water to prevent buildup, while a self-cleaning sight tube provides clear visibility for process monitoring.
| System Capacity | 50 to 3,000 GPH of 0.5% solution with 30 minutes of aging |
| Dry Polymer Feed Capacity | Up to 250 lbs/hr (113 kg/hr) |
| Dilution Water Feed Capacity | Up to 100 GPM (380 LPM) |
| Hopper Capacity | 2.7 ft³ (75 L) |
| Hopper Feature | Includes vibrator for consistent polymer flow |
| Construction | Welded stainless steel frame and enclosure |
System Type
Single pump system
Product Compatibility
M1, M2, M3, M4, MD1, MD3, MC2, MC3
Frame Material
Polyethylene
Mounting Position
Floor or Wall
PSI
150
Bar
10.3
No PDF available.

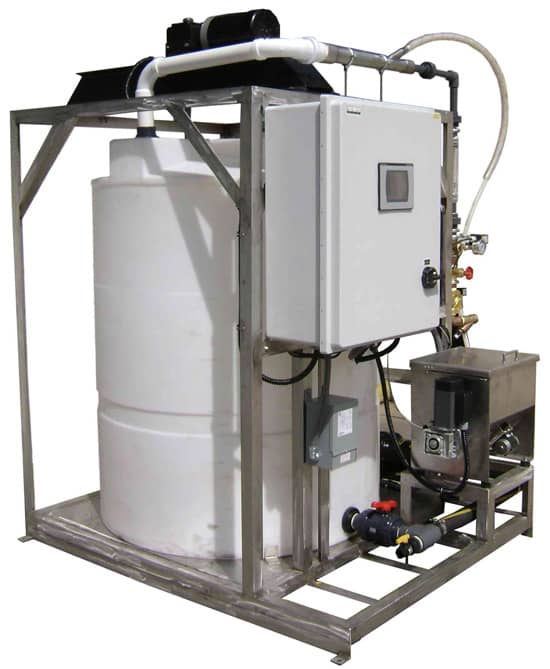

Burt Process PolymerPlus dry polymer feed system is engineered to provide a reliable means of feeding dry polymers. A multi-step process efficiently disperses and hydrates the polymer into a homogeneous solution. The initial step wets the polymer with multiple sprays. The solution is suctioned by a high energy eductor which conveys it to the aging tank and then the solution is gently agitated until fully aged. The polymer blending system is fully modular. It is available complete with age or feed tanks and solution metering pumps of your choosing: gear pumps, progressing cavity pumps, wobble stator pumps, diaphragm pumps, or peristaltic pumps. The tanks can be configured over/ under, side-by-side, or sequentially. Our system can also be adapted to utilize existing water treatment, mix, or storage tanks.
The PolymerPlus Dry Auger System is engineered to provide a reliable means of feeding dry polymers and other difficult to feed materials. the material being fed is vacuumed by the eductor suction air flow. This prevents polymer build-up. The feed rate is controlled by a variable speed gear motor. The feeder is easy to operate and simple to maintain. Our dry polymer systems assemblies are modular in design, available complete with tank or metering pumps and can also be adapted for use with existing storage tanks.
| SERIES | FEED RATE | FLOW RATE |
|---|---|---|
| 101 | 1 – 25 lbs. (0.5 – 11 Kg) | 480 – 600 GPH (1,800 – 2,270 LPH) |
| 102 | 2 – 50 lbs. (1 – 22 Kg) | 960 – 1,200 GPH (3,600 – 4,500 LPH) |
| 103 | 3 – 75 lbs. (1.5 – 33 Kg) | 1,440 – 1,800 GPH (5,450 – 6,800 LPH) |
| 104 | 4 – 100 lbs. (2 – 45 Kg) | 1,920 – 2,400 GPH (7,200 – 9,000 LPH) |
| 105 | 8 – 200 lbs. (4 – 90 Kg) | 3,840 – 4,800 GPH (14,400 – 18,000 LPH) |
| 106 | 10 – 300 lbs. (5 – 135 Kg) | 4,800 – 6,000 GPH (18,200 – 22,700 LPH) |
