Ultrapure Water Systems – RODI

A high-purity water system is a pre-engineered and prepackaged solution designed to reliably generate, store, and distribute ultrapure water for biotech, pharmaceutical, industrial, academic, food and beverage processing, and semiconductor applications. All units are fully skid-mounted and factory tested, ensuring quick installation, reduced start-up time, and long-term operational reliability.

RODI – Ultrapure Water Systems for Industrial Applications



Burt Process Equipment’s Pure-X family of ultra-pure water systems is a complete line of generation and distribution equipment. The advanced skid-mounted modules offer a pre-packaged high-purity water solution. RODI system optimizes the quality of water generated to meet these strict standards: United States Pharmacopeia (USP) for purified water used in pharmaceutical manufacturing; water testing standards set by the American Society of Testing and Materials (ASTM International) and the National Committee for Clinical Laboratory Standards (NCCLS); State-enforced water standards such as the Central Arizona Project (CAP).

Burt Process engineers and technicians provide complete on-site support for installation and start-up, training, system, and distribution loop sanitation. Custom systems are also available for customers with unique requirements, with available services ranging from preliminary site reviews, process design, and specification writing to complete mechanical design, project management, and software development.

Features

  • Generation rates from 0.5–200 gpm for all major water qualities
  • Fully skid-mounted and factory-tested modules
  • PLC-based controls with optional web/remote interface
  • Water quality monitors and integrated control systems
  • Pre-treatment tailored to the source (softening, carbon treatment)
  • Reverse osmosis with high-pressure vessels & performance membranes
  • Deionization options: mixed-bed resin and EDI
  • Ultraviolet treatment for bacteria & TOC reduction
  • Final filtration: industrial, sanitary, or electronics-grade
  • Proprietary ultrapure storage vessels
  • Fusion-welded polypropylene and PVDF sanitary piping
  • Complete system customization for industry-specific needs



Markets Served by Ultra-Pure Water Systems

  • Pharmaceutical Manufacturers
  • Life Science Research Facilities
  • Biomedical and Clinical Laboratories
  • Semiconductor Fabrication Plants
  • Food and Beverage Processing
  • Metal Finishing Industry
  • Hospitals and Institutions
  • Educational Facilities
  • Power Generation Plants

Specifications

  • Fusion welded and sanitary polypropylene and PVDF piping
  • Sanitary 316SS piping
  • Electro-deionization (EDI)
  • Single and two-pass reverse osmosis design available
  • USP generation from membrane filtration
  • Complete suite of instrumentation for monitoring critical parameters, including resistivity, TOC, particle counts, and more
  • Degasification systems
  • Continuous chemical sanitization
  • PLC controls with optional web interface
  • Precision-controlled nitrogen blanketing for storage vessel
  • Ethernet and modem options for remote access

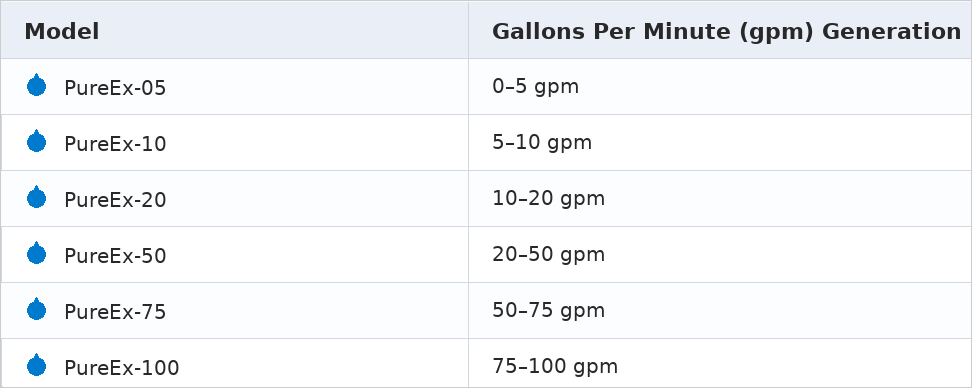

RODI – Model Specification

Ultra-Pure Water System

Downloads

TitleDownloads
RODI Brochure View PDF
Purex RODI System Application Questionnaire View PDF

Case Studies

Reverse Osmosis Water System for Industrial & Commercial Applications

A fully prepackaged RO solution featuring advanced pretreatment, stainless-steel pumping, real-time conductivity monitoring, and automated control—designed for seamless integration and consistent high-purity water production.
Read the Full Case Study
